Automotive sensor
DMS1000
DMS/LDWS/FCWS (2 cameras)- Features
- Comply with AIS-184、AIS-188、UNECE R130
- Dual camera 1920 x 1080
- Fatigue, distraction detection
- Lane departure warning
- Forward collision warning @ TTC 2.5s
Description
DMS/LDWS/FCWS (2 cameras)| Item | Specification | Remarks |
|---|---|---|
| DMS function | Comply with AIS-184. | |
| LDWS function | Comply with AIS-188, UNECE R130 | |
| FCWS function | Detects cow, road safety barriers, pedestrian and vehicles Warning @ TTC <= 2.5sec | |
| SoC | RV1126B Cortex A53 Quard-Core 1.8GHz NPU 3.OT | |

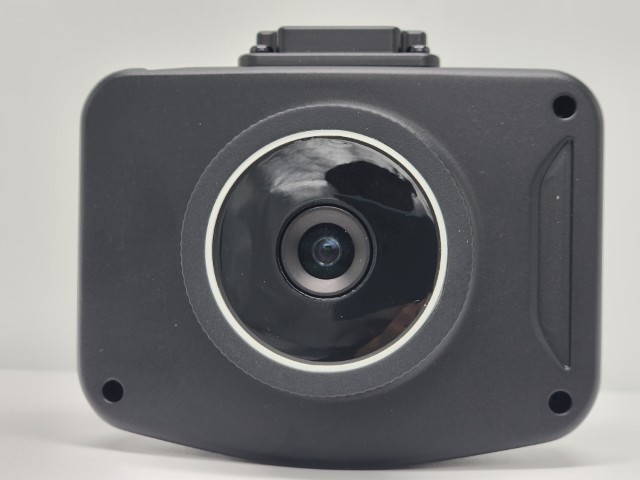

| DMS Camera | 1920 x 1080, HFoV 122 , VFoV 64.6 | |

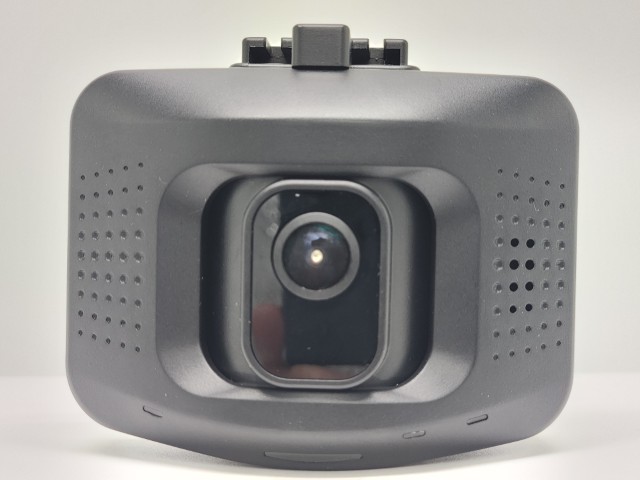

| LDWS/FCWS Camera | 1920 x 1080, HFoV 79 , VFoV 49 | |
| DRAM | DDR4 1GB | |
| eMMC | 8GB | |
| SD Socket | Yes, SD card not included | |
| CAN | CAN FD | |
| USB | USB 2.0, Type C, Video streaming | |
| Connector | 8pins GND, Battery, ACC, GND, CAN_H, CAN_L, TX, RX | |
| Power | 9V ~ 36V | |
| Speaker | 1.5W | |
| Buttons | 4 buttons, DMS warning enabled/disabled, LDWS warning enabled/disabled, FCWS warning enabled/disabled, Reset |
|
| LED | 3 status LEDs for DMS warning, LDWS warning, FCWS warning green: enabled, orange: disabled 1 event LED |
|
| Car mount | Yes | |
| Certification | AIS 184, AIS 188, AIS 004(part 3) | |
| OTA | via USB | |
| CAN protocol | Yes, DMS events, LDWS events, System info, Setting, etc. | |
| Packing | Industrial packing | |
| Operating Temperature | -40 deg C ~ +85 deg C | |
| Storage Temperature | -40 deg C ~ +85 deg C |
